3/8″ Flat Face Hydraulic Quick Connect Female Coupler, 1/2″ SAE Thread

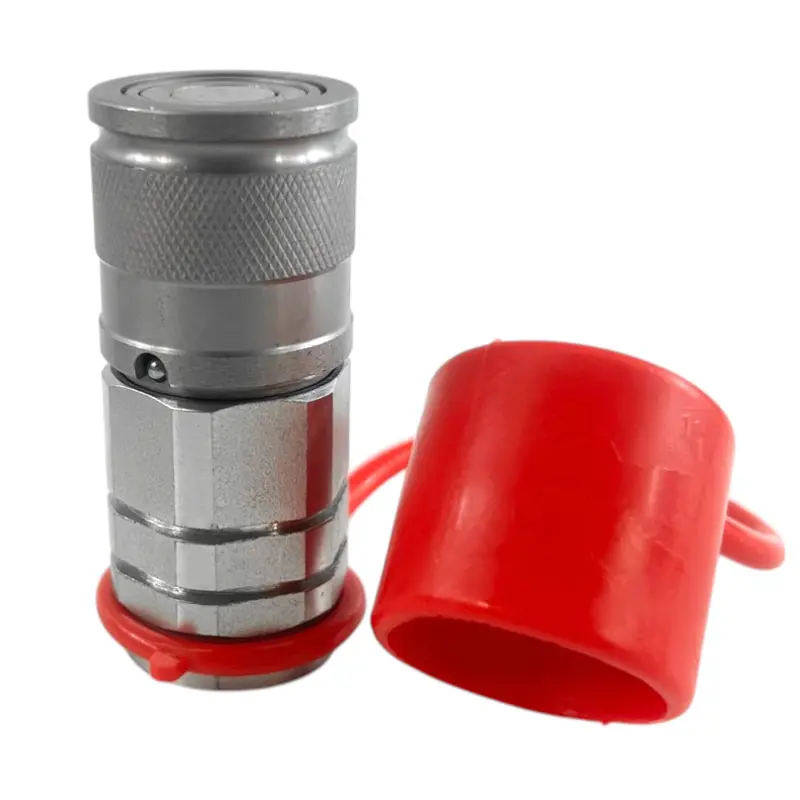

3/8″ Female Hydraulic Flat Face Quick Coupler – 1/2″ SAE Thread

SKU: FF-10 F SAE12

This 3/8″ female flat face hydraulic quick coupler is designed for leak-free, high-performance connections in hydraulic systems. It complies with ISO 16028 interchange standards, ensuring compatibility with other flat face couplers. Featuring a flush face valve design, this coupler minimizes fluid loss and prevents air inclusion, making it ideal for high-pressure, high-flow applications.

Key Benefits & Features

• Flush Face Valve Design – Reduces fluid loss and air contamination during connection and disconnection.
• Trivalent Zinc Plating – Provides superior corrosion resistance for extended service life.
• Hardened Steel Construction – Increases durability and wear resistance in demanding environments.
• Locking Sleeve Mechanism – Helps prevent accidental disconnection for enhanced safety.
• Optimized Flow Performance – Allows for minimal pressure drop, ensuring efficient operation.
• Reliable Sealing System – Buna-N seals with a Teflon backup ring withstand temperatures up to 250°F.

Technical Specifications

• Maximum Operating Pressure: 5,076 PSI
• Maximum Flow Rate: 12.12 GPM
• Nominal Flow Rate: 6.08 GPM
• Female Face Diameter: 1.26” (32mm)
• Female Length: 4.65” (118mm)
• Hex Size: 1.18” (30mm)
• Port Thread: 1/2″ SAE (3/4″-16 UNF)
• Body Size: 3/8″

Interchangeable With

(Compatible with ISO 16028 standard couplings.)
