90 Degree Female Flat Face Hydraulic Quick Connect Coupler Set, 3/4″ JIC Male Thread

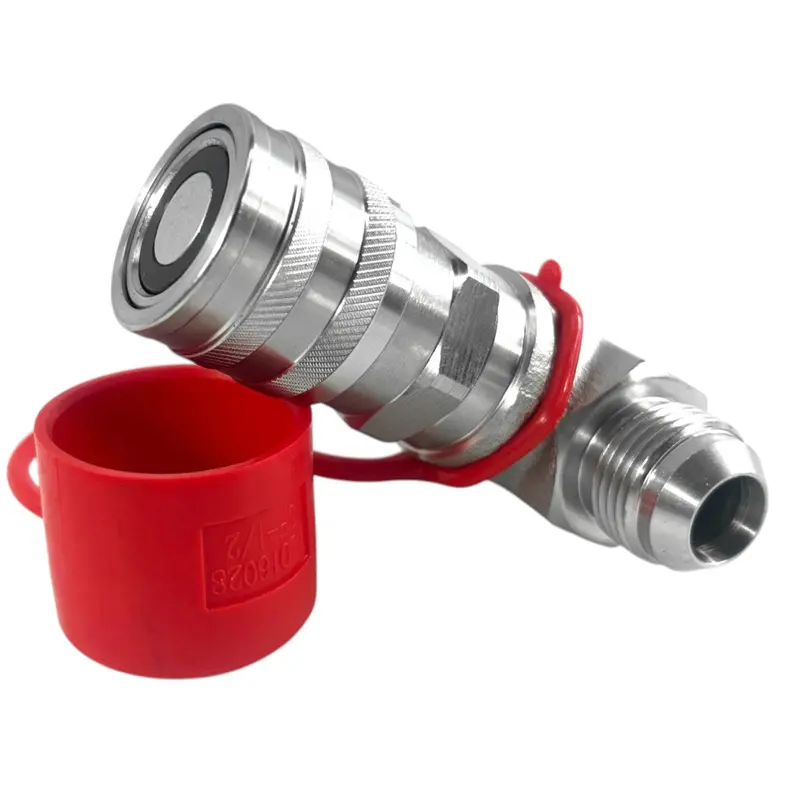

90 Degree ISO 16028 Flat Face Hydraulic Coupler – Male 3/4” JIC (#12 JIC)

SKU: FF90-12 F JIC34M
Body Size: 1/2”
Port Thread: Male 3/4” JIC (#12 JIC)

This high-performance ISO 16028 hydraulic coupler is designed for applications where reliable, efficient connections are critical. With a 90-degree connection angle, it prevents hydraulic line damage while ensuring minimal fluid loss and air inclusion. Perfect for adding a grapple to a skid steer or for use on an excavator boom arm, this coupler is built for durability and ease of use. The locking sleeve prevents accidental disconnection, and the Trivalent Zinc Plating offers superior corrosion resistance for long-lasting reliability.

Key Benefits:

• 90-Degree Connection Angle: Minimizes strain on hydraulic lines, reducing the risk of damage.
• Low Profile Design: Allows for easy mounting without the need for extra fittings.
• Flush Face Valve: Minimizes fluid loss and air inclusion for cleaner operation.
• Locking Sleeve: Ensures a secure connection, preventing accidental disconnections.
• Superior Corrosion Resistance: Trivalent Zinc Plating extends the coupler’s lifespan in harsh environments.
• Durable Construction: Hardened steel body and sleeves provide exceptional strength and wear resistance.
• Minimal Pressure Drop: Ensures efficient hydraulic performance.
• Single-Handed Push-Connect Design: Quick and easy connection with one hand.
• Nipple Seal: Resists blow-outs for reliable performance under pressure.
• ISO 16028 Standard: Fully interchangeable with other ISO 16028 compliant couplers for versatile applications.

Specifications:

• Pressure Rating: 5,076 PSI
• Flow Rate: 12 GPM Nominal
• Seals: Buna-N Seals with Teflon backup ring (operates up to 250°F)
• Female Face Diameter: 1.50” (38mm)
• Female Length: 3.39” (86mm)
• Hex Size: 1.42” (36mm)
• Body Size:1/2″
• Thread: 3/4″ JIC 37˚ (1-1/16″-12 UN)

Interchangeable With:

• AKSpare: FF90-12 F JIC34M
• Faster: FFH08-61/34SAE F
• Holmbury: H12-F-12JM90

Weight: 1.45 lbs
Dimensions: 6 × 6 × 4 in
Body Material: Hardened Steel
Thread Type: JIC
Locking Type: Ball
