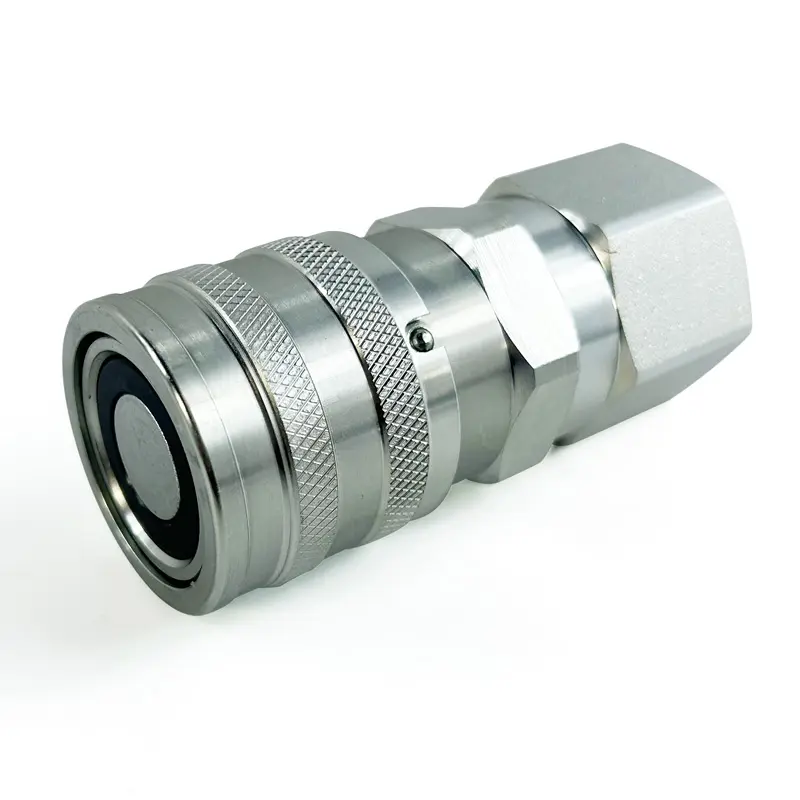

Direct Replacement for Bobcat® 7246790 Hydraulic Female Flat Face Quick Coupler

The Bobcat® 7246790 Hydraulic Female Flat Face Quick Coupler is a key component in the hydraulic systems of many Bobcat machines and attachments. It is a female coupler designed with a flat face, a feature that helps minimize hydraulic fluid leakage and prevent contaminants from entering the system during the connection and disconnection of hydraulic lines. This design contributes to a cleaner work environment and helps maintain the integrity of the hydraulic fluid.

This quick coupler is identified by Bobcat part number 7246790. Direct replacements for this Bobcat coupler are readily available from various manufacturers and parts suppliers. These replacements are designed to meet or exceed the specifications of the original Bobcat part, ensuring proper fit and function.

Key specifications and features

• Type: Female Flat Face Quick Coupler
• Bobcat Part Number: 7246790
• Body Size: 1/2″
• Thread Size: 3/4″-16 SAE/ORB (O-Ring Boss)
• Pressure Rating: Commonly rated for a working pressure of 5076 PSI (35 MPa).
• Material: Often constructed from hardened steel with plating, such as zinc-nickel, for durability and corrosion resistance.
• Features: Flat face valve design for minimal fluid loss and air inclusion, low-pressure drop, and often a push-to-connect design for easy, single-handed operation.
• Interchangeability: Designed to be interchangeable with other quick couplers that comply with the ISO 16028 standard for flat face couplers.

The Bobcat 7246790 female coupler is compatible with a wide range of Bobcat equipment, including various models of skid steer loaders, compact track loaders, mini excavators, utility vehicles, and telehandlers. It is also utilized with numerous Bobcat attachments that require hydraulic power.

• Skid Steer Loaders: 542, 543, 553, 653, 751, 753, 763, 773, 7753, 853, 863, 873, 963
• Compact Track Loader: 864
• Backhoes: B100, B200, B250, B300, BL275, BL370, BL375, BL470, BL475, BL570, BL575
• Mini Excavators: 319, 320, 321, 322, 323, 324, 325, 328, 329, 331, 334, 335, 337, 341, 418, 425, 428, 430, 435, E08, E10, E14, E16, E17, E17Z, E19, E20, E32, E32i, E35, E35i, E42, E45, E55, E55W, E57W, E60, E62, E63, E80, E85
